ProductS Recovery Winches

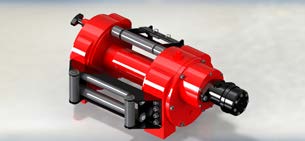

IRB-W8000

Max. Working Pressure 175 Bar
Pump Flow 75 lt/min
Rope Diameter 16 mm
Max Rope Capacity 80 m.
Motor Displacement 130 cc.
Brake Multidisc Brake
Free Pulling
Gear Train Planetary Gear

Rope Winding Layer n 1 2 3 4 5
Pulling Capacity daN 8000 6600 5600 5000 4600
Rope Winding Speed m/min 5.6 7.1 8.3 9.5 10.8
Total Rope on the drum m. 11.4 25.2 41.4 60.0 80.0

PERFORMANCE CHARTS AT THE 1ST LAYER
