ProductS Recovery Winches

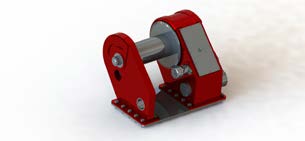

IRB-W20000

Max. Working Pressure 175 Bar
Pump Flow 60 lt/min
Rope Diameter 20 mm
Max Rope Capacity 78 m.
Motor Displacement 100 cc.
Brake Multidisc Brake
Free Pulling
Gear Train Planetary Gear

LOW SPEED LINE PULL Rope Winding Layer n 1 2 3 4 5
Pulling Capacity daN 20000 16500 14000 12400 10000
LINE SPEED Rope Winding Speed m/min 3.3 4.3 5.2 5.9 6.4
HIGH SPEED LINE PULL Pulling Capacity daN 5000 4200 3600 3200 3000
LINE SPEED Rope Winding Speed m/min 13.5 17.0 21.0 24.6 30.0

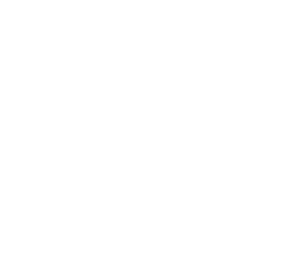

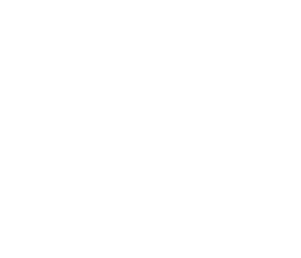

PERFORMANCE CHARTS AT THE 1ST LAYER
